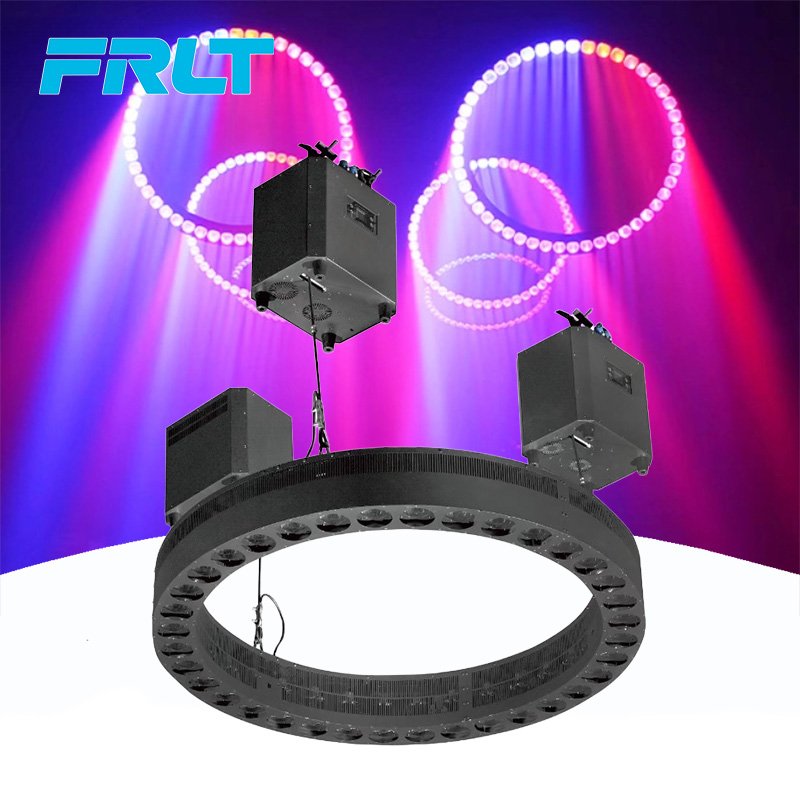

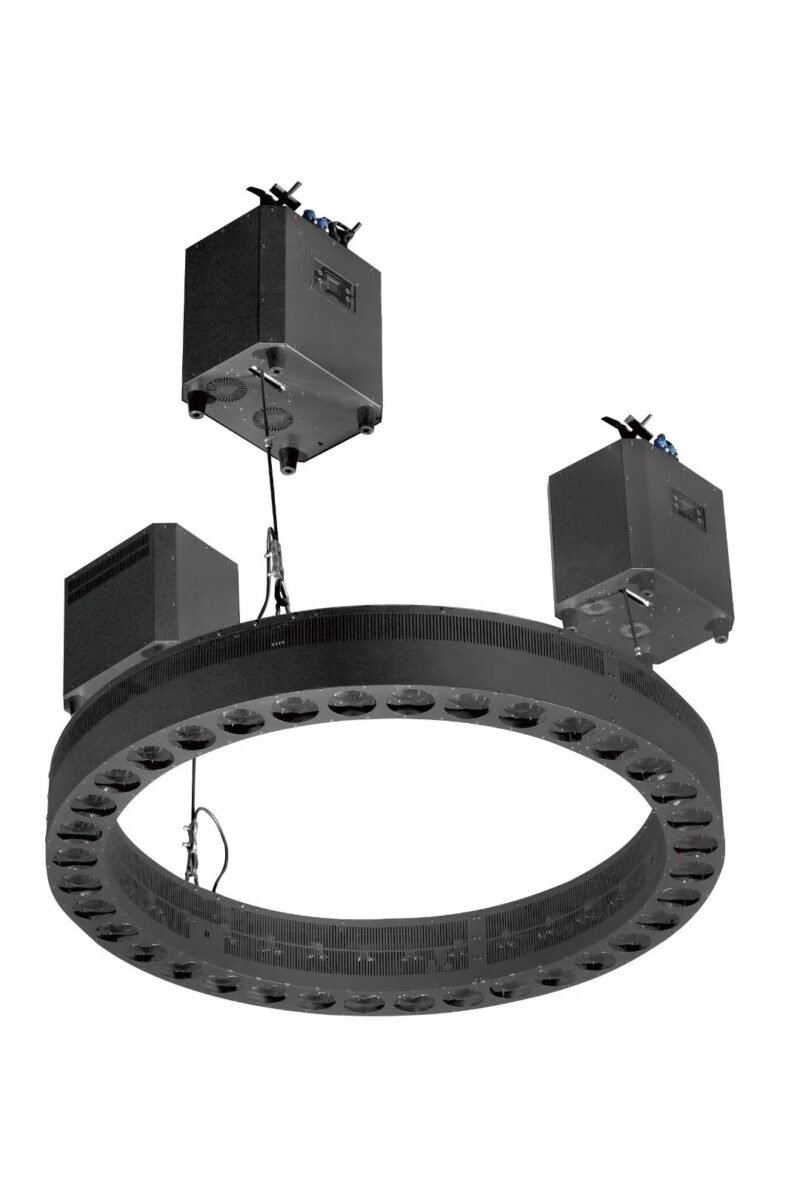

36 Ring Light

Aperture parameters:
Aperture light source: 36 RGBW*40W imported lamp beads
Aperture size: outer diameter 120CM/inner diameter 100CM
Aperture weight: 22KG
Lifting machine: 3 units
Single machine load: 20KG
Lifting stroke: 7 meters
Maximum speed: 0.4 meters/second
Control method: DMX-512
Total number of channels: 4CH/9CH/144CH
Control interface: 3-core XLR input/output
Lifter display: touch button
Aperture display: digital button
Load-bearing cable: diameter 7 MM
Synchronous error: less than 6MM
Voltage: AC90V-240V/50-60HZ
Lifter power: 400W*3
Aperture power: 750W
Waterproof grade: IP20
Working environment: -10℃~50℃
Safety guarantee: physical braking, electronic protection, screw reducer
Installation method: vertical lifting
Net weight of the whole machine: 20KG*3/22KG*1
Lifter size: 32*32*48CM
Lifter packaging method: carton
Carton size: 40*40*46 CM
Aperture net weight: 22KG
Carton packaging: 128*128*24
Air box: Air box size: 125*125*45cm
Empty box weight: 52.5kg
