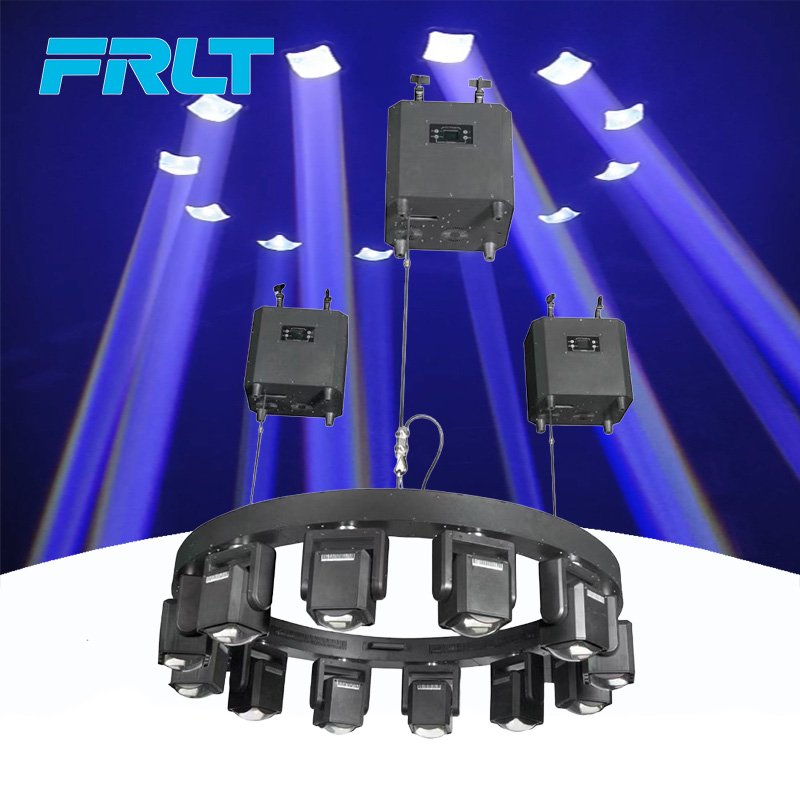

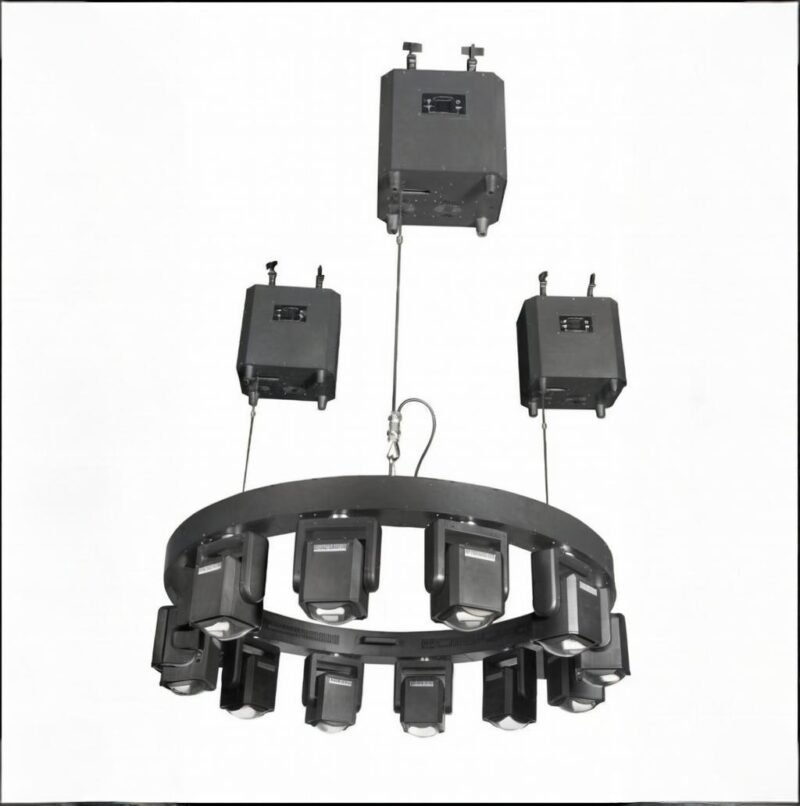

12 Ring Light

Input voltage: AC100-240V, 50/60Hz
Beam ring light power: 800W
Lifter power: 3x400W
Light source
Beam light source: 12x80W RGBW LEDs
Auxiliary light source: 432x3W warm light LEDs, 432x3W white light LEDs
Light source life: 20,000 hours
Optical system
Beam angle: 2°
Control
4 light-touch buttons
Control panel: LCD display
Control protocol: DMX512,
RDM lamp DMX channel mode: 3 types
Lamp control channel: 6/14/81CH
Lamp size: 274mm long, 274mm wide, 450mm high
Net weight: 5.9kg
Independent address code control of lamps and lifters
Lamp DMX channel mode: 3 types
Lamp control channel: 22/90/130CH
Lifter control channel: 4CH
X-axis/Y-axis
X-axis operation angle: 360° Y-axis running angle: 360°
X-axis/Y-axis position out-of-step automatic correction
X-axis/Y-axis: 16-bit precision scanning

Applicable lifting system information lifts: 3
Lifting stroke: 6m
Lifting speed: 0.5m/s
Single machine load: 10kg
Control protocol: DMX512
Control channel: 4CH
Control panel: LCD display, 4 touch buttons
Safety guarantee: physical braking, electronic protection

Power socket: power connector input/output signal input/
Output: 3-pin/5-pin XLR socket working environment
Maximum ambient temperature: 40°C Minimum operating temperature: 0°C
Protection level: IP20 installation
Equilateral vertical hoisting
Lighting specifications
Lighting size: outer diameter 1200mm, inner diameter 1000mm, height 313mm
Net weight: 39.5kg
Lifting machine size: length 321mm, width 251mm, height 324mm
Net weight: 20kg
